Keychron Q8 (Alice Layout) QMK Collection de mises en page ISO de clavier mécanique personnalisé
Keychron Q8 (Alice Layout) QMK Collection de mises en page ISO de clavier mécanique personnalisé - Bouton entièrement assemblé (noir de carbone) / FR-ISO / Gateron G Pro Rouge est en rupture de stock et sera expédié dès qu'il sera de nouveau en stock.
Impossible de charger la disponibilité du ramassage
- Le PCB du clavier, le boîtier et la plaque d'acier.
- Touches OSA Profile ABS rétroéclairées (touches Mac et Windows incluses).
- Commutateurs Gateron G Pro.
Aucun code de réduction ne peut être utilisé pour la version de mise en page ISO Q8.
Veuillez déposer votre e-mail sur « Me prévenir lorsque disponible » si le modèle de produit est en rupture de stock.
Keychron Q8 (Alice Layout) QMK Collection de mises en page ISO de c...
Keychron Q8
ISO Layout Versions

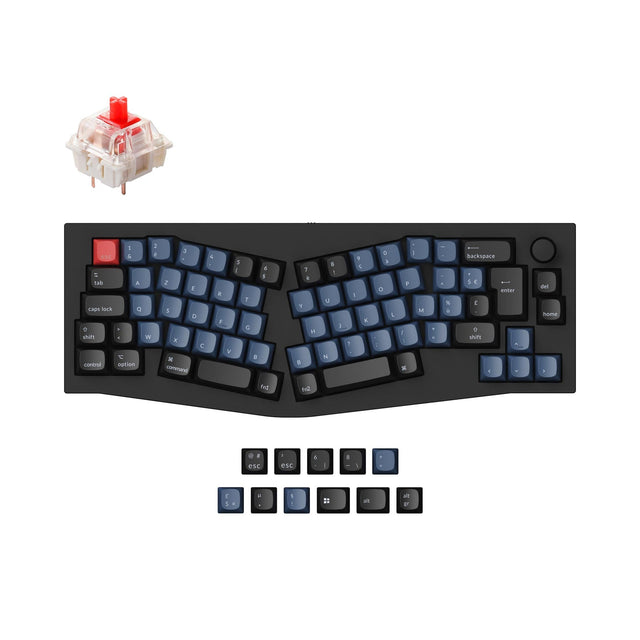

Keychron Q8 is a 65% Alice layout all-metal mechanical keyboard. With its all-metal CNC machined body, a full-size layout, double-gasket design, QMK/VIA support, and knob option, the Q8 meets all your practical needs and gives you a high-end typing experience.
Choose the keycaps, switches and more accessories for your Q8
Q8 ISO Layout Version
The Keychron Q8 QMK custom mechanical keyboard ISO layout collection comes with the UK, German, Nordic, Swiss, French, and Spanish layouts. Each Q8 ISO layout keyboard is also equipped with extra keycaps that fully satisfy your needs.
🇩🇪 DE-ISO Layout
🇬🇧 UK-ISO Layout
🇫🇷 FR-ISO Layout
🇩🇰🇫🇮🇳🇴🇸🇪 Nordic-ISO Layout
🇨🇭 Swiss-ISO Layout
🇪🇸 ES-ISO Layout
With keycaps for macOS installed on Q8 DE-ISO layout.
With keycaps for Windows installed on Q8 DE-ISO layout.
A Refined Piece Of Metal Art
The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q8.
All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.
Double-Gasket Design
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
An Epic Core Inside The Keyboard
A brand new ultra-low-power MCU Arm structure that is powerful and armed with 128K Flash to provide more flexibility for developers. The polling rate is up to 1000 Hz out of the box, which makes latency non-existent for the competitive game.
OSA Profile ABS Backlight Shine-Through Keycaps
To further leverage your typing experience, the Q8 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS backlight shine-through keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.
Switch layouts between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron Q8 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Programmable Knob
Designed to enhance your creative workflow, the premium rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.
You can easily customize the Q8's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.
Setting the macros for "zoom in/out"
Using the knob as "zoom in/out"
Program with QMK & Launcher.
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.
*Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.
Hot-swappable.
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.
South-facing RGB LED Lights.
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Note: The Q8's top case has sharper corners to make it much more compatible with third-party keycaps.
Pre-lubed Gateron G Pro Switch
The optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled Q8 version fitted with factory pre-lubricated Gateron G Pro switches, a smoother travel experience is guaranteed for you.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q8 also supports third-party stabilizers, including Cherry or Durock.
ANSI & ISO layouts.
ISO layout is widely used in Europe while the ANSI layout is widely used by the rest of the world.
Note: If you live in Europe, we recommend you to purchase the "Barebone ISO” version with the corresponding ISO keycaps. The "Barebone ISO” is suitable for all ISO keyboard countries like the UK, Germany, France, Italy, Spain, Denmark, Norway, Sweden, Finland, Iceland, etc.
ANSI Layout
ISO Layout
Typing Sound Test
What's in the box?
Specs
| Width | 136 mm |
|---|---|
| Length | 358 mm |
| Front Height | 19.8 mm (without keycaps) |
| Back Height | 31.5 mm (without keycaps) |
| Feet Height | 2.7 mm |
| Angle | 5° |
| Weight | 1820 g ± 10g (the fully assembled weight) |
| Body Material | Full CNC machined aluminum |
| Plate | Steel |
| Polling Rate | 1000Hz |
| Layout | FR-ISO, |
| Keycaps (Fully Assembled Version) | OSA Profile ABS backlight shine-through keycaps |
|---|---|
| Switches | Gateron G Pro (Fully Assembled Knob Version) |
| Backlight | South-facing RGB LED |
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Stabs | Screw-in PCB stabs |
| Connectivity | Type-C cable |
| Cable | Type-C cable + Type-A to Type-C adapter |
| MCU | Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash) |
| Operating Environment | -10℃ to 50℃ |
Learn more about the Keychron Q8 such as the Q8 shortcuts, assembling the Q8, factory reset, and more in the FAQ section.
