Keychron V10 (Alice Layout) QMK Collection de mises en page ISO de clavier mécanique personnalisé
Keychron V10 (Alice Layout) QMK Collection de mises en page ISO de clavier mécanique personnalisé - Bouton entièrement assemblé (noir givré) / FR-ISO / Keychron K Pro Rouge est en rupture de stock et sera expédié dès qu'il sera de nouveau en stock.
Impossible de charger la disponibilité du ramassage
- Boîtier en plastique ABS
- Le PCB du clavier, les languettes à visser et la plaque d'acier
- Touches transparentes OSA Profile ABS (y compris les touches Mac et Windows)
- Commutateurs Keychron K Pro
Aucun code de réduction ne peut être utilisé pour la V10.
Veuillez déposer votre e-mail sur « Me prévenir lorsque disponible » si le modèle de produit est en rupture de stock.
Keychron V10 (Alice Layout) QMK Collection de mises en page ISO de ...
Keychron V10
ISO Layout Collection
A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.
Choose the keycaps, switches and more accessories for your V10
Keychron V10 ISO Layout Versions
These versions include the Nordic, Swiss, German, UK, French, and Spanish layouts, all with extra keycaps suitable for Mac and Windows devices.
🇨🇭Swiss-ISO Layout
🇩🇰 🇫🇮 🇳🇴 🇸🇪 Nordic-ISO Layout
🇩🇪 German DE-ISO Layout
🇬🇧 UK-ISO Layout
🇫🇷 French-ISO Layout
🇪🇸 Spanish-ISO Layout
All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every part the way you want.
Note: The screw heads are molded into the case, so they have a very strong grip and won’t fall out.
An Epic Core Inside The Keyboard
A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.
OSA Profile ABS Backlight Shine-Through Keycaps
To further leverage your typing experience, the V10 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.
Switch Layouts Between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V10 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Get the V4 keymap working on VIA
Since the VIA code for the V4 is still awaiting approval from Github, it is not yet automatically recognized, so you will need to manually download and import the V4 keymap.
To get started, please follow the steps: Download the appropriate kemap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, drag the JSON file into the “Design” tab on VIA to get the V4 keymap working on VIA.
Program with QMK & Launcher.
The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.
*Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.
Hot-swappable.
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

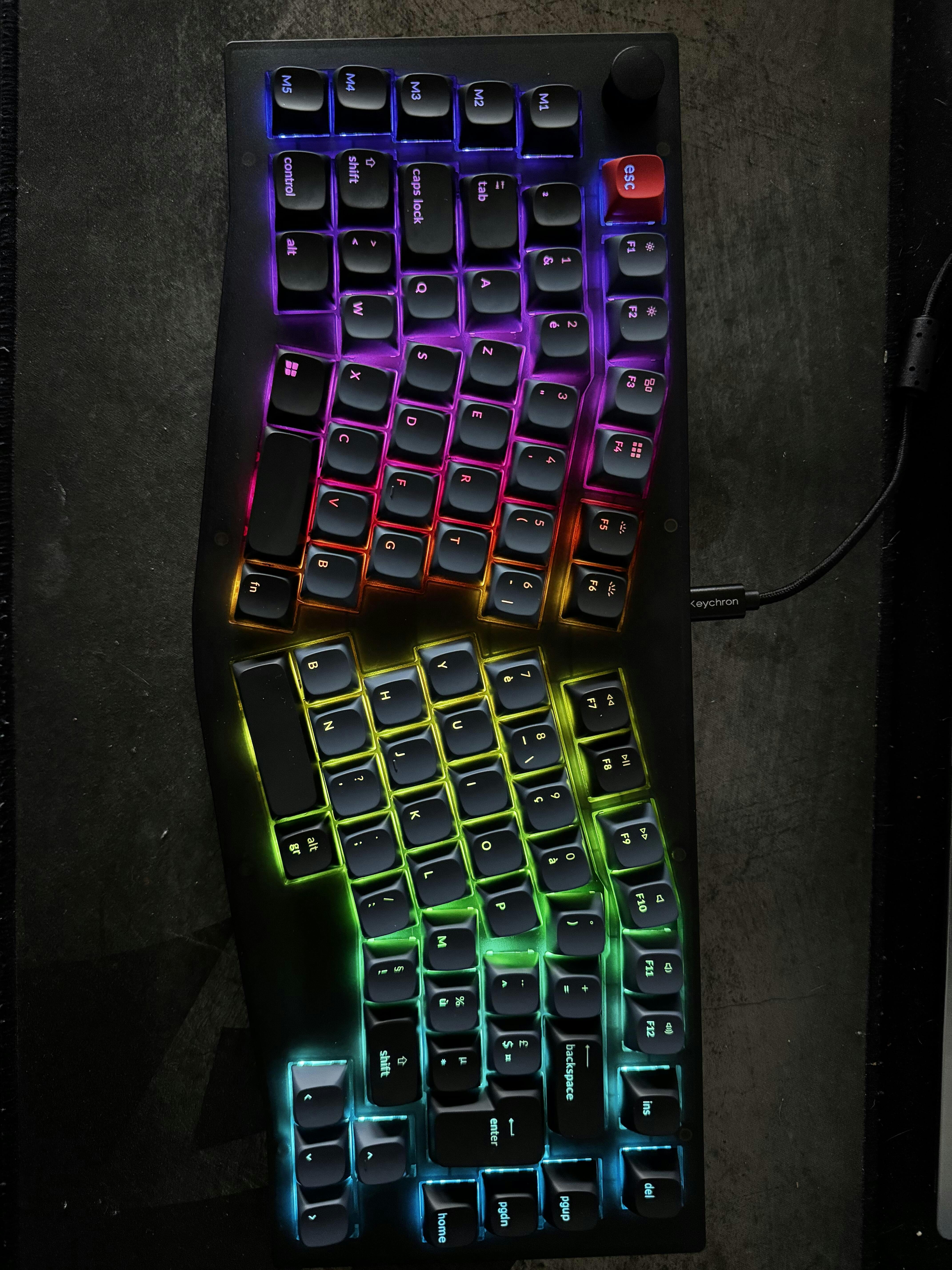

South-facing RGB LED Lights.
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Pre-lubed Keychron K Pro Switch
By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron V10 also supports third-party screw-in PCB stabilizers.
What's in the box?
Specs
| Width | 141.3 mm |
|---|---|
| Length | 386.7 mm |
| Front Height | 18.7 mm (without keycaps) |
| Back Height | 27.2 mm (without keycaps) |
| Feet Height | 3 mm |
| Angle | 3.5° / 6.7° / 9.3° |
| Weight | 1230±10 g (Fully Assembled Version) |
| Body Material | ABS Plastic |
| Plate | Steel |
| Polling Rate | 1000 Hz |
| Mount Style | Tray Mount Design |
| Keycaps (Fully Assembled Version) | OSA Profile ABS backlight shine-through keycaps |
|---|---|
| MCU | Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash) |
| Backlight | South-facing RGB LED |
| Switch | Keychron K Pro |
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Connectivity | Type-C cable |
| Cable | Type-C cable + Type-A to Type-C adapter |
| Operating Environment | -10℃ to 50℃ |
| Stabs | Screw-in PCB stabs |
Learn more about the Keychron V10 such as the V10 shortcuts, assembling the V10, factory reset, and more in the FAQ section.
