Keychron V3 QMK Custom Mechanical Keyboard ISO Layout Collection

SKU: V3-C1-BO
€94,00

Type
Layout Version
Switch Option

The fully assembled version includes:
  • ABS plastic housing
  • The keyboard PCB, screw-in stabs, and the steel plate
  • OSA profile ABS shine-through keycaps (including Mac & Windows keycaps)
  • Keychron K Pro switches

No discount codes can be used for V3. Please drop your email on "Notify Me When Available" if the product model is out of stock.


Keychron V3

ISO Layout Collection

Keychron V4 Custom Mechanical Keyboard

The V3 is a classic TKL (80%) layout custom keyboard with many premium features like QMK/VIA support, backlight shine-through keycaps, screw-in stabs, etc., which provides endless possibilities and a comfortable typing experience!

v3-iso-pbt-1__PID:0d67c50a-631c-42ec-8f33-07a37b96910d

Frosted Black-PBT Keycaps (Non-Shine-Through)

Keychron V4 Custom Mechanical Keyboard

Frosted Black-ABS Keycaps (Shine-Through)

Features of Keychron V1 Custom Mechanical Keyboard

*Fully Assembled-ABS Keycaps Version features OSA Shine-through ABS keycaps.
*Fully Assembled-PBT Keycaps Version features OSA double-shot PBT keycaps, which are non-shine-through.

Customize Your V3 ISO

Choose the keycaps, switches and more accessories for your V3 ISO

OSA Profile Keycaps

To further leverage your typing experience, the V3 ISO version comes with our unique OSA profile (OEM profile with spherical angle) keycaps.

Shine-Through ABS Keycaps

k10-pro-iso-abs-new__PID:6d74b112-4ed9-4f16-bf25-d237d1f1a630

ABS keycaps aim to provide a comfortable fingertip feel and a fantastic backlight shine-through effect.

Double-Shot PBT Keycaps

k-pro-iso-pbt-1__PID:b1124ed9-bf16-4f25-9237-d1f1a6305008

The double-shot PBT keycaps will provide excellent oil resistance, and prevent the legends from fading out.

Keychron V3 ISO Layout Versions

These versions include the Nordic, Swiss, German, UK, French, and Spanish layouts, all with extra keycaps suitable for Mac and Windows devices.

🇬🇧 UK-ISO Layout (ABS)

🇬🇧 UK-ISO Layout (PBT)

v3-iso-pbt-uk__PID:8822a249-8acd-41d0-9f9d-e28fc01d1856

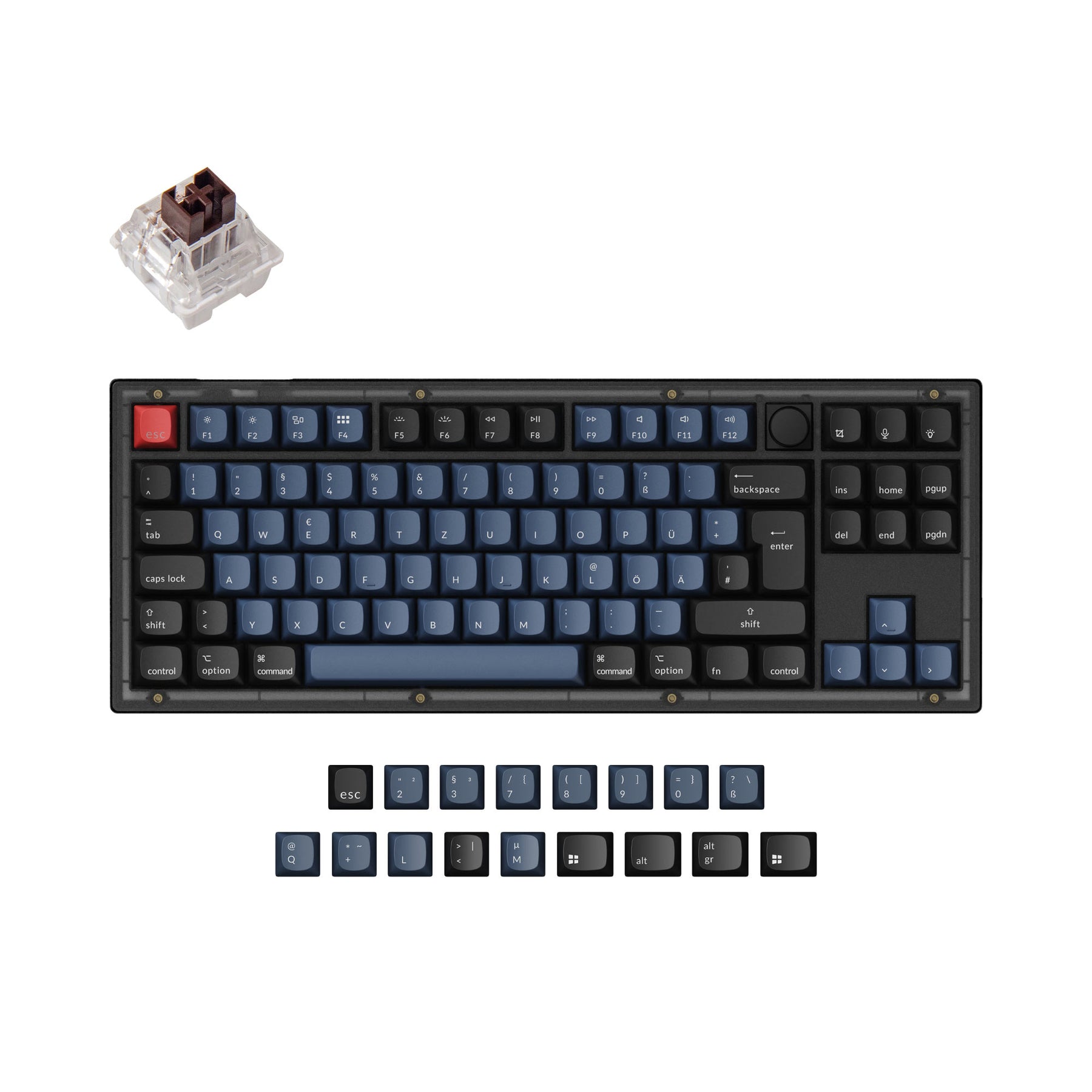

🇩🇪 German DE-ISO Layout (ABS)

🇩🇪 German DE-ISO Layout (PBT)

v3-iso-pbt-de_bcba9c37-d8d5-45c9-a0df-d4b5827c5cef__PID:a2498acd-71d0-4f9d-a28f-c01d18562e37
Click here to view pictures of Swiss, Nordic, French, Spanish layouts.

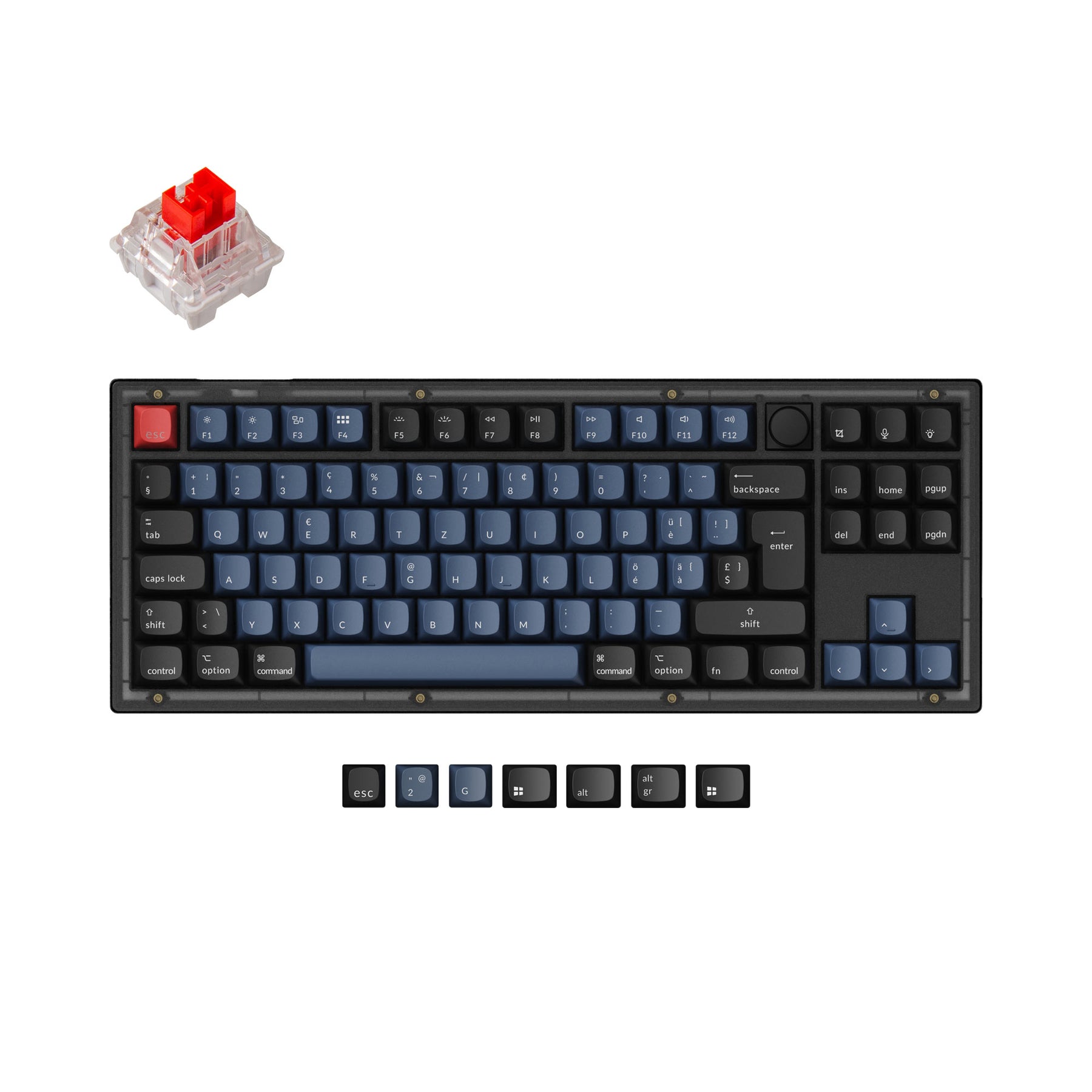

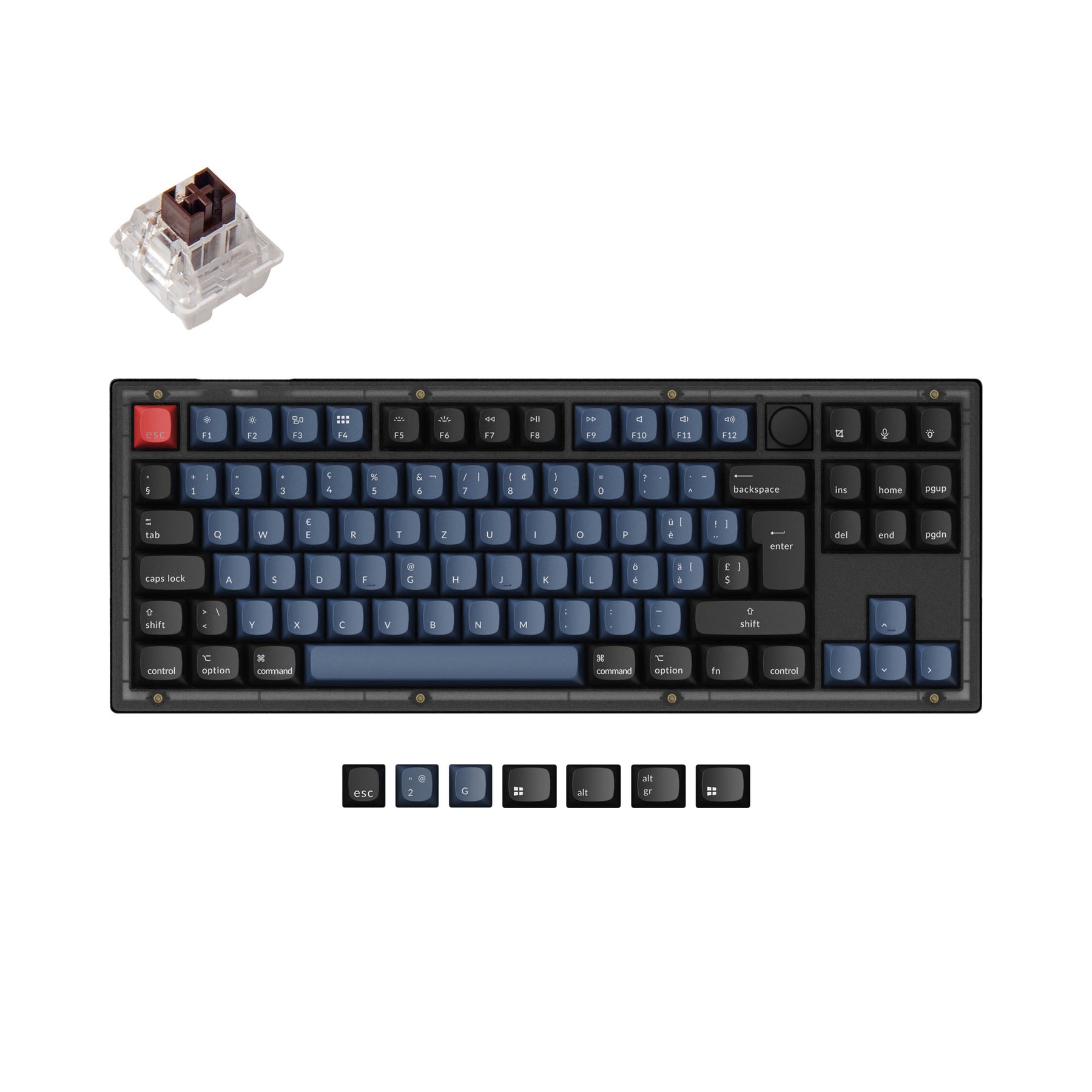

🇨🇭Swiss-ISO Layout (ABS)

🇨🇭Swiss-ISO Layout (PBT)

v3-iso-pbt-swiss__PID:8acd71d0-df9d-428f-801d-18562e3789ad

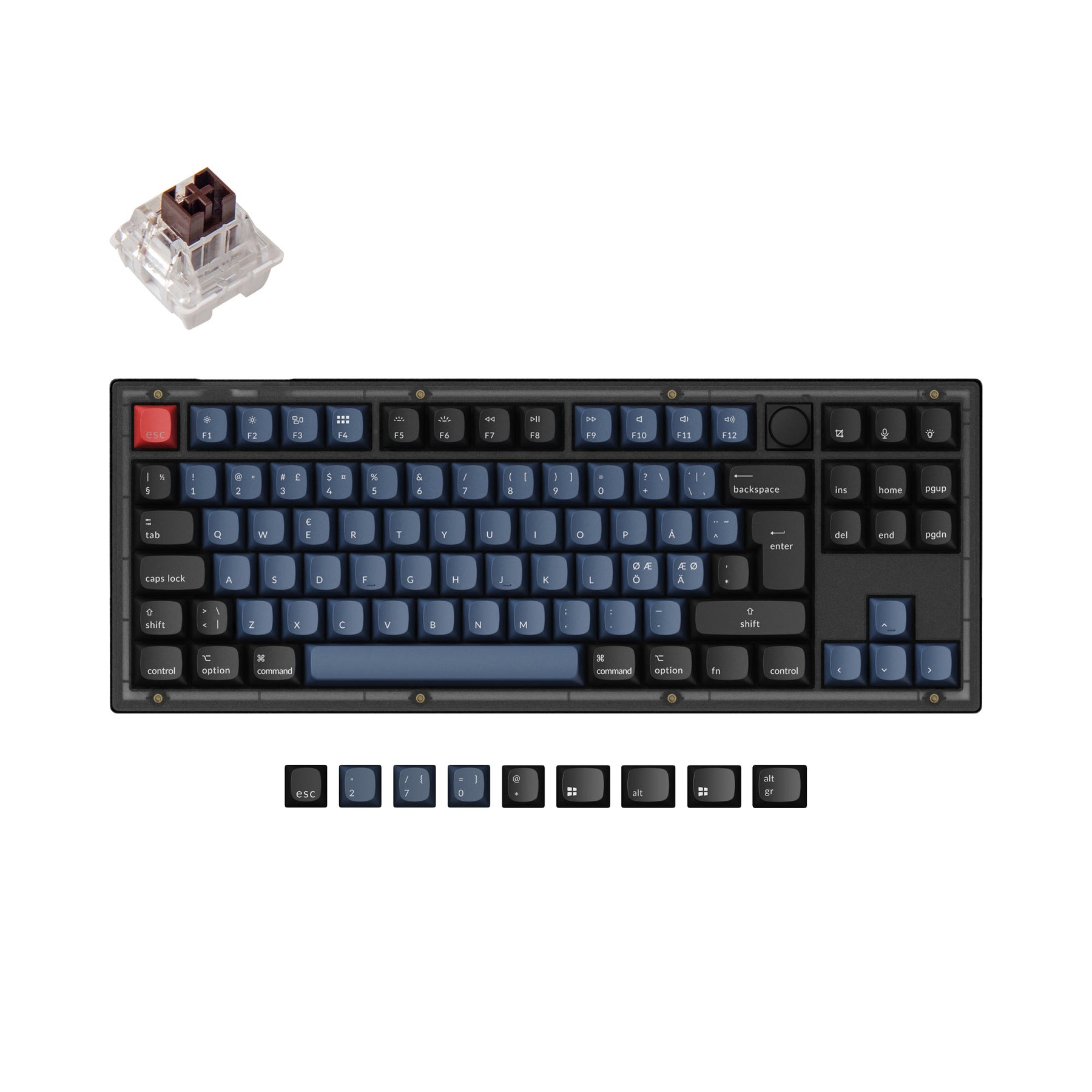

🇩🇰 🇫🇮 🇳🇴 🇸🇪 Nordic-ISO Layout (ABS)

🇩🇰 🇫🇮 🇳🇴 🇸🇪 Nordic-ISO Layout (PBT)

v3-iso-pbt-nordic__PID:71d0df9d-e28f-401d-9856-2e3789add5df

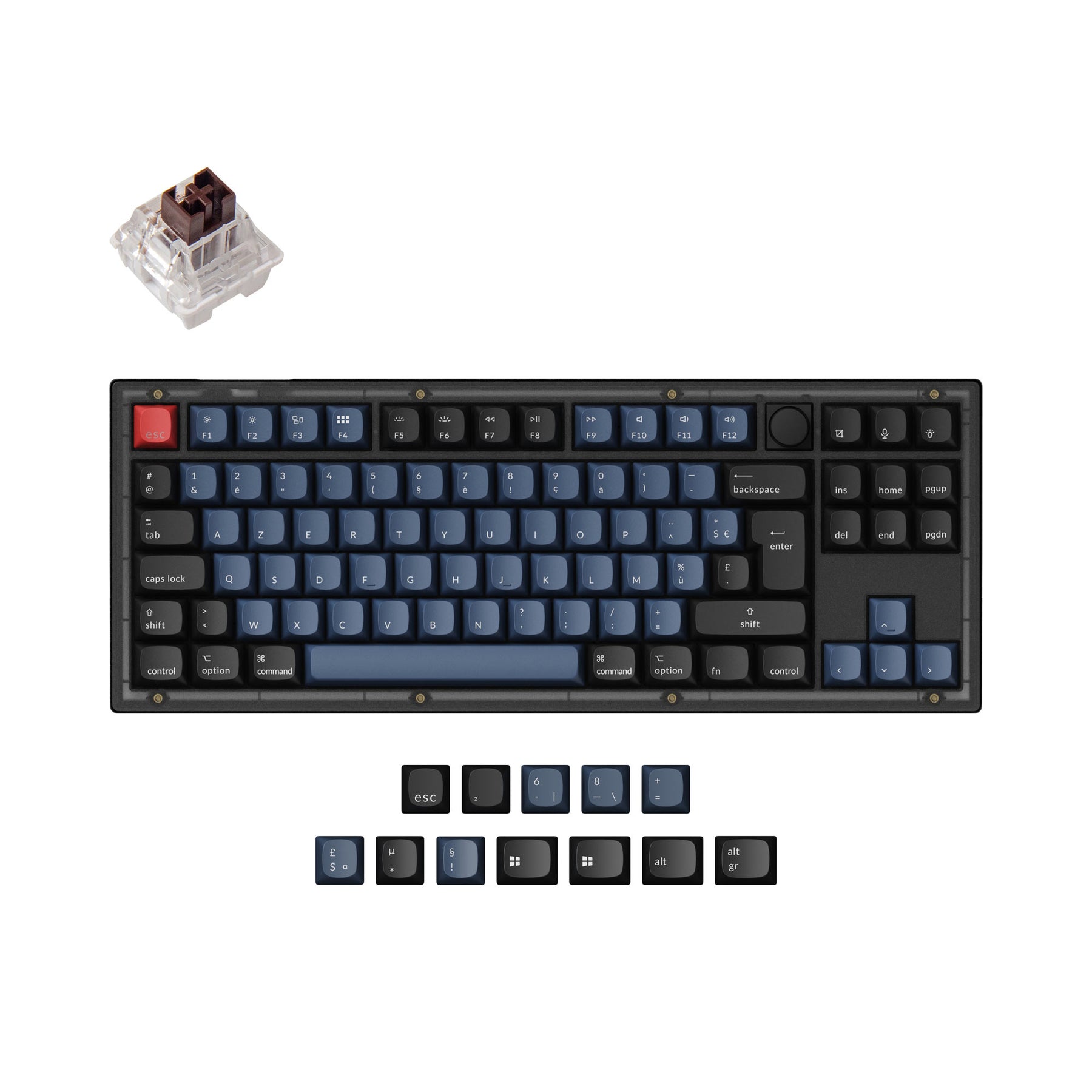

🇫🇷 French-ISO Layout (ABS)

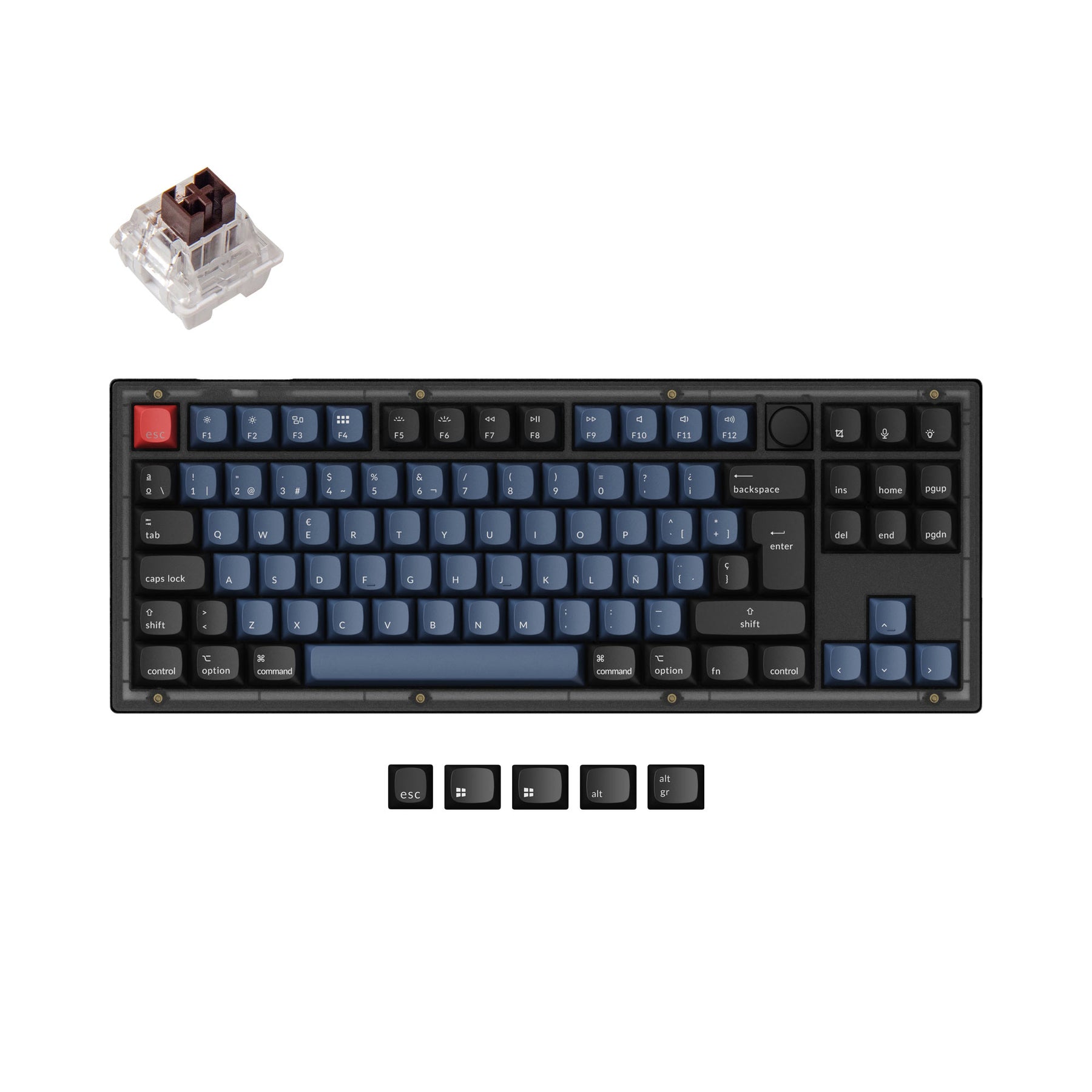

🇪🇸 Spanish-ISO Layout (ABS)

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every part the way you want.

Keychron V4 Custom Mechanical Keyboard
keychron-v3-qmk-via-custom-mechanical-keyboard-iso-layout-layers-mobile

Note: The screw heads are molded into the case, so they have a very strong grip and won’t fall out.

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.

Keychron V4 Custom Mechanical Keyboard
Keychron V4 Custom Mechanical Keyboard

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V3 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

pfLauncher

Program with QMK & Launcher.

The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.

Program the K14 Pro keyboard with Launcher
Click here to use Keychron Launcher

*Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.

Hot-swappable.

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Barebone US layout of Keychron V4 Custom Mechanical Keyboard

Pre-lubed Keychron K Pro Switch

By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.

Keychron V4 Gateron K Pro Switch Features
All New Screw In PCB Stabilizers Keychron V4 Custom Mechanical Keyboard

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron V3 also supports third-party screw-in PCB stabilizers.

What's in the box?

Keychron V4 Custom Mechanical Keyboard

Specs

Width140.56 mm
Length366.70 mm
Front Height19.44 mm (without keycaps)
Back Height26.83 mm (without keycaps)
Feet Height2.4 mm
Angle3.5° / 7.26° / 9.69°
Weight1120 ± 10 g  (Fully Assembled Version)
Body MaterialABS Plastic
PlateSteel
Polling Rate1000 Hz
Mount StyleTray Mount Design
Keycaps (Fully Assembled Version)OSA Profile ABS backlight shine-through keycaps
MCUUltra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
BacklightSouth-facing RGB LED
SwitchKeychron K Pro (Fully Assembled Version)
Switch SupportHot-swappable (5 pin & 3 pin)
ConnectivityType-C
CableType-C cable + Type-A to Type-C adapter
Operating Environment-10℃ to 50℃
StabsScrew-in PCB stabs
Keychron V3 User Guide

Learn more about the Keychron V3 such as the V3 shortcuts, assembling the V3, factory reset, and more in the FAQ section.
