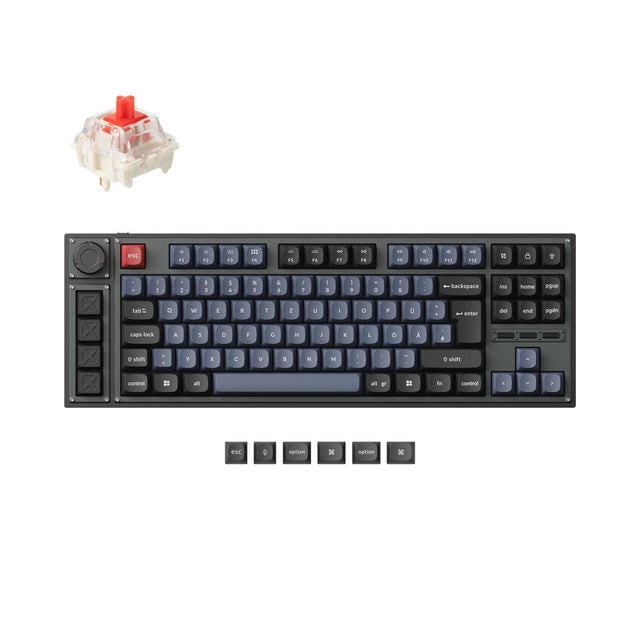

Lemokey L3 QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection
Lemokey L3 QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection
Lemokey L3 QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection
Lemokey L3 QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection
Lemokey L3 QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection
Lemokey L3 QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection
Lemokey L3 QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection
Lemokey L3 QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection
Lemokey L3 QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection
Lemokey L3 QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection
Lemokey L3 QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection

Lemokey L3 QMK/VIA Wireless Custom Mechanical Keyboard ISO Layout Collection

L3-M1-DE

Regular price €209,00
/
10 in stock

Type
Layout Version
Switches
The Fully Assembled version includes:
  •  The keyboard PCB, the case, and the PC plate.
  • Keycaps (included Mac & Windows keycaps).
  • Switches.

The Barebone version does not include the keycaps and switches.
No discount codes can be used for L3 ISO.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

LEMOKEY L3
ISO Layout Versions

Meet the Lemokey L3 ISO, a 2.4 GHz full metal QMK/VIA custom mechanical keyboard built for peak performance. Dominate the game in style with the 2.4 GHz wireless connection in the L3’s solid metal body. The open-sourced QMK/VIA software brings endless possibilities for you to customize your favorite keys and macros with ease.

lemokey-l3-iso__PID:786a5da9-15a2-4c3b-b1fa-422acc458d3c
lemokey-l3-iso-version__PID:5da915a2-3c3b-41fa-822a-cc458d3c9e84

As a brand of Keychron, the Lemokey L3 ISO can be assembled easily so you can fine-tune each component the way you want, together with a flexible double-gasket design, hot-swappable PCB, and Bluetooth connectivity for multitasking, the L3 is ready to bring a whole new gaming experience in no time.

features-of-lemokey-l3-iso__PID:15a23c3b-71fa-422a-8c45-8d3c9e842712
Customize Your L3

Choose the keycaps, switches and more accessories for your L3

L3 ISO Layout Versions

L3 ISO includes the UK, German, Swiss, and Nordic layouts, each equipped with extra keycaps suitable for Windows and Mac devices.

🇩🇪 DE-ISO Layout

german-de-iso-layout__PID:3c3b71fa-422a-4c45-8d3c-9e842712ff63

🇬🇧 UK-ISO Layout

uk-iso-layout__PID:71fa422a-cc45-4d3c-9e84-2712ff6383cd

🇨🇭Swiss-ISO Layout

swiss-iso-layout__PID:cc458d3c-9e84-4712-bf63-83cd4380a362

🇩🇰🇫🇮🇳🇴🇸🇪 Nordic-ISO Layout

nordic-iso-layout__PID:422acc45-8d3c-4e84-a712-ff6383cd4380

Play Wirelessly

2.4 GHZ WITH 1000 HZ POLLING RATE

Get ready for a brand new gaming experience with the L3’s 2.4 GHz wireless connection with a 1000 Hz polling rate. You can also connect the L3 with up to 3 devices through its stable Bluetooth 5.1 for seamless multitasking across your computer, phone, and tablet. Switch among them swiftly.

lemokey-l3-iso-24-ghz__PID:8d3c9e84-2712-4f63-83cd-4380a36223a5

Full Metal

DURABLE AND TOUGH

The L3 is not just a tool, but a piece of art on your desk. The L3 is created with a 6063 aluminum CNC machined body, polished, anodized and sandblasted finish, and twenty-four manufacturing processes.

lemokey-l3-iso-full-metal__PID:9e842712-ff63-43cd-8380-a36223a51d87
lemokey-l3-iso-full-metal-durable__PID:2712ff63-83cd-4380-a362-23a51d8772a6

Modular Design

CUSTOMIZE WITH EASE

Every detail matter to make your favorite keyboard, that’s why every component on the L3 can be assembled, customize and adjust easily to create your ultimate typing experience.

lemokey-l3-iso-structure__PID:ff6383cd-4380-4362-a3a5-1d8772a67a72

Double-Gasket

DAMPENED SOUND AND ELASTIC

Experience the next level of key sounds and comfort with the Keychron signature double-gasket mount design. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

double-gasket-design__PID:83cd4380-a362-43a5-9d87-72a67a720973

Double-Shot PBT

OSA PROFILE NON-BACKLIT KEYCAPS

To further leverage your typing experience, the L3 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and non-backlit PBT keycaps that aim to provide a more comfortable fingertip feel, excellent oil resistance, and prevent the legends from fading out.

osa-profile-keycap__PID:4380a362-23a5-4d87-b2a6-7a720973130e
osa-profile-keycap-2__PID:a36223a5-1d87-42a6-ba72-0973130e8aaa

Programmable Knob

Designed to enhance your creative workflow, the premium rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.

Keychron Q6 full size Custom Mechanical Keyboard

You can easily customize the Q6's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.

Setting the macros for "zoom in/out"

Using the knob as "zoom in/out"

Programmable

KNOB & MACRO COLUMN

Upgrade your gaming experience with the additional macro keys and aluminum rotary encoder. It allows you easily customize the knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, or volume, etc

knob-_-macro-column-of-lemokey-l3-iso__PID:23a51d87-72a6-4a72-8973-130e8aaa931b

QMK/VIA

REMAP ANY KEY AND ANY MACRO

The open-sourced QMK/VIA software is offering endless possibilities for anyone to remap any key and create any macro commands, shortcuts, or key combinations with ease right in a browser. You can also store your favorite setting with the L3’s onboard memory.

Simply connect the L3 to your device with a cable, open the VIA software, import the JSON file, drag and drop your favorite keys or macro commands to remap any key you want on any system (macOS, Windows, or Linux). It’s never been so intuitive to personalize your very own keymap.

Check out the video above demonstrating how to remap the M1 key to a Sleep key with the VIA software to create a shortcut to put your Windows to sleep (Win + L).

A brand new powerful ultra-low-power Arm chip (MCU) that is armed with 256K Flash to provide more flexibility for developers, and makes latency non-existent for the competitive gamer.

Get the L3 keymap working on VIA

Since the VIA code for the L3 is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file (ANSI or ISO) below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the L3 keymap working on VIA.

Download L3 Knob ISO keymap JSON file
hot-swppable-feature-of-lemokey-l3-iso__PID:1d8772a6-7a72-4973-930e-8aaa931bc93d

Hot-Swappable

CUSTOMIZE YOUR SWITCH ANYTIME

Every detail matters for a personalized typing experience, that’s why we give you the power. You can hot-swap every switch on the L3 with almost all of the 3pin and 5pin MX style mechanical switches on the market (including Cherry, Gateron, Kailh, Panda, etc.) without soldering required. You can customize your own typing experience in seconds.

For More Keycap Profile

SOUTH-FACING RGB

The south-facing RGB is designed to illuminate backlight to the typist when the non-shine-through PBT keycaps are installed. With 22 types of RGB backlight settings (Watch the video above for all backlight settings), you can further fine-tune the RGB hue, saturation, brightness, effect speed, and different modes, or even remap these keys with QMK/VIA.

Gateron Jupiter Switch

PRE-LUBE AND RELIABLE

Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 5-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.

keychron-gateron-jupiter-mx-mechanical-switch-red-brown-banana__PID:72a67a72-0973-430e-8aaa-931bc93dc5b3
pcbscrewinstabilizers-1673404766600_1__PID:e2dbfb20-c5c8-4c30-a749-cf1a82deeeca

Screw-In Stabilizers

SMOOTH AND STABLE

The built-in PCB-mounted screw-in stabilizers create a smooth typing experience with less wobbliness on the big keys such as space bar, shift, enter, and delete. You can even customize your favorite 3rd parties stabilizers on your own.

ANSI & ISO layouts.

ISO layout is widely used in Europe while the ANSI layout is widely used by the rest of the world.

Note: If you live in Europe, we recommend you to purchase the "Barebone ISO” version with the corresponding ISO keycaps. The "Barebone ISO” is suitable for all ISO keyboard countries like the UK, Germany, France, Italy, Spain, Denmark, Norway, Sweden, Finland, Iceland, etc.

Keychron Q6 ANSI Layout 100% Custom Mechanical Keyboard

ANSI Layout

Keychron Q6 ISO Layout 100% Custom Mechanical Keyboard

ISO Layout

Keychron Q6 full size Custom Mechanical Keyboard

Different Versions

Keychron Q6 full size Custom Mechanical Keyboard

What's in the box?

fully-assembled-knob-version__PID:7a720973-130e-4aaa-931b-c93dc5b355bd
iso-barebone-version__PID:0973130e-8aaa-431b-893d-c5b355bda63f

Specs

Dimension401 x 137 mm (15.78 x 5.39 inches)
Number of Keys91 (Unique tenkeyless layout)
LayoutISO Fully Asssembled and ISO (EU) Barebone
Back Height without keycaps29.84 mm (1.17 inches)
Front Height29.84 mm (without keycaps)
WeightAbout 1976 g (Fully Assembled version)
Frame Material Full CNC machined aluminum
Plate MaterialPC
Keycap Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
Switch FaceSouth-facing RGB
Cable Length1.8 m
SwitchGateron Jupiter (Fully Assembled version)
StabilizerScrew-in PCB stabilizer
BacklightSouth-facing RGB LED
Hot-swappableYes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.
MCU Ultra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
Polling Rate1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
N-Key Rollover (NKRO)Yes for both wireless and wired modes
Operating Environment-10 to 50℃
Battery4000 mAh Rechargeable li-polymer battery
BT Working Time (Backlit off)Up to 200 hours (Lab test result may vary by actual use)
BT Working Time (RGB)Up to 100 hours (Lowest brightness)
Bluetooth Version5.1
Compatible System macOS/Windows/Linux
Connectivity2.4 GHz/Bluetooth / Type-C wired
Bluetooth Device NameLemokey L3
Charging TimeAround 5 hours
Charging PortUSB type-C
Keychron L3 User Guide

Learn more about the Keychron L3 such as the L3 shortcuts, assembling the L3, factory reset, and more in the FAQ section.
