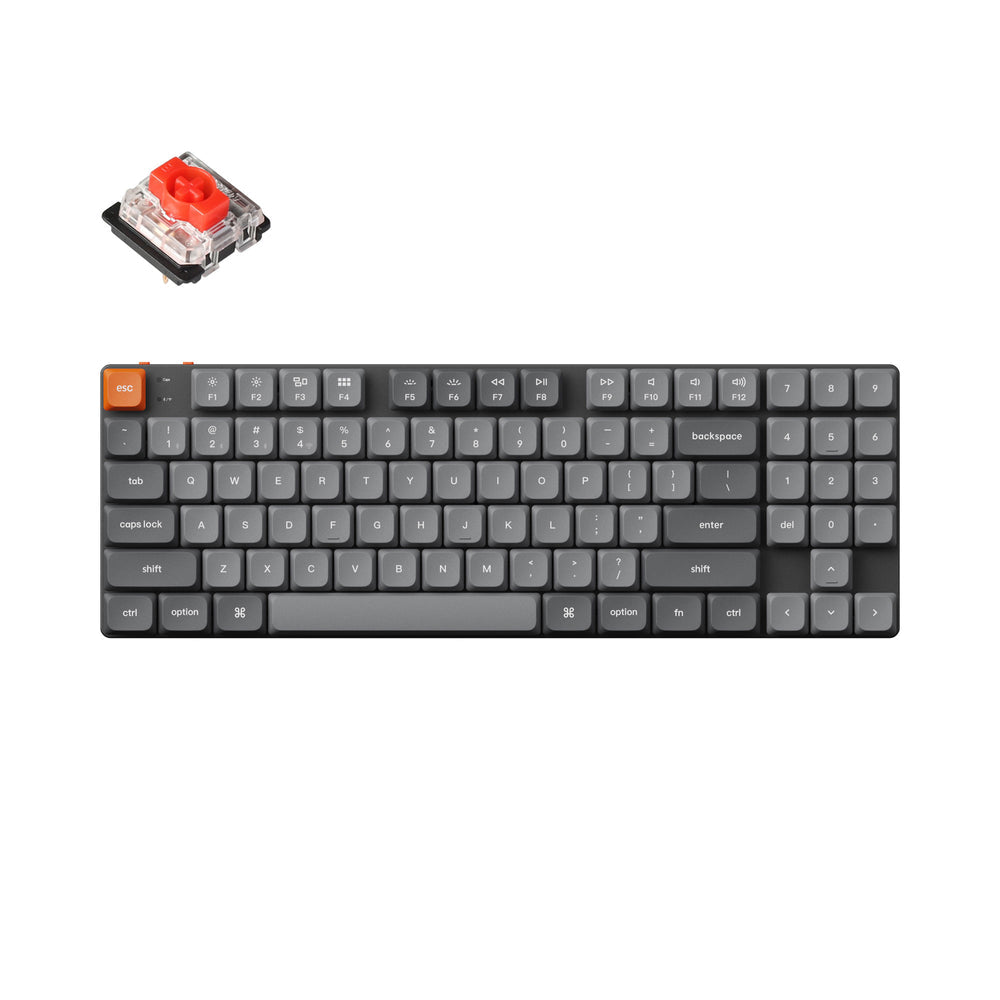

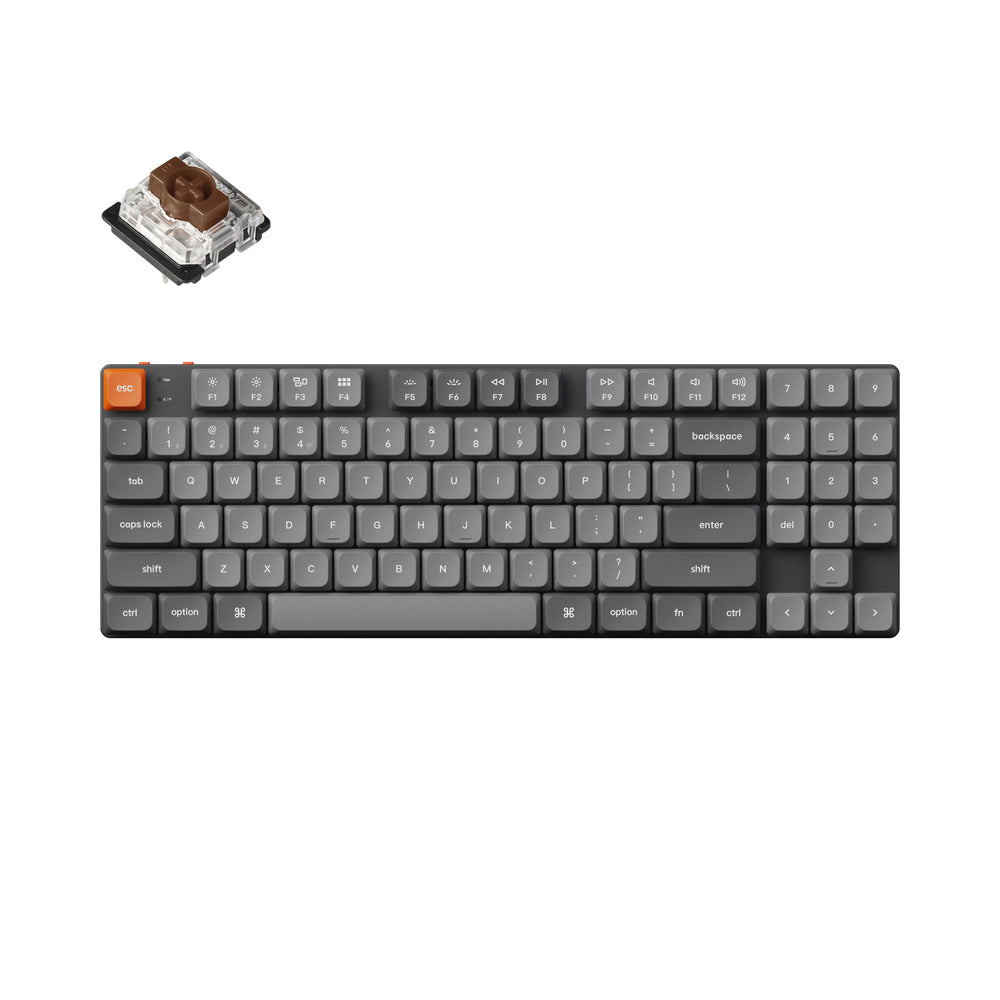

Keychron K13 Max QMK/VIA Wireless Custom Mechanical Keyboard(US ANSI Layout)

Keychron

K13 Max

 The K13 Max is a low-profile wireless mechanical keyboard featuring a unique 80% layout with a numpad. It supports 2.4 GHz, Bluetooth, and wired connections. Empowered by QMK/VIA, it offers endless possibilities and enhanced productivity in your work and gaming!

2.4 GHz & Bluetooth Connection

Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the K13 Max via Bluetooth 5.1 to three devices.

Ultra-Slim

The innovative low-profile Gateron switch is 31% slimmer than conventional normal profile switches makes the aluminum body K13 Max one of the thinnest wireless mechanical keyboards in the world. While still delivering a distinguished tactile response.

Program with QMK & VIA.

QMK/VIA means endless possibilities for a fluid workflow. Thanks to our engineering team, it's the first time in history that a wireless mechanical keyboard has these kinds of capabilities right out of the box.

Simply connect the K13 Max to your device with a cable, drag and drop your favorite keys or macro commands to remap any key you want on any system (macOS, Windows, or Linux).

ARM Cortex-M4 32-bit STM32F402 MCU which is powerful, and equipped with 256K Flash will provide more flexibility for developers.

Get the K13 Max keymap working on VIA

Since the VIA code for the K13 Max version is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the K13 Max keymap working on VIA.

K13 Max Keymap JSON Files

Suitable For All Devices

Offers a Mac layout while remaining compatible with Windows. It stands out in the market by providing the same multimedia and function key functions as Apple keyboards for Mac users, but with enhanced tactile feedback.

Additionally, you can configure different keymaps for both Mac and Windows devices. The VIA software is compatible with macOS, Windows, and Linux. The keyboard includes keycaps for both macOS and Windows, along with additional esc and enter keys, facilitating seamless switching between operating systems.

An Epic Core Inside

A powerful ARM architecture MCU equipped with 256KB Flash will provide more flexibility for developers. The polling rate is 1000 Hz on 2.4GHz and wired modes right out of the box, which makes the latency hardly noticeable even in competitive games.

Interior Acoustic Foam

Elevate your typing with K13 Max featuring advanced IXPE acoustic foam for silent keystrokes and enhanced comfort, coupled with resilient latex foam for superior key switch support, responsiveness, and durability. Redefining the standard for a quiet, comfortable, and responsive typing experience.

Hot-Swappable (Optional)

We all have our unique typing preferences, that’s why we are offering hot-swappable option on the K13 Max, so you can easily hot-swap every low-profile Gateron mechanical switch in a few seconds to customize the typing experience without soldering.

*The K13 Max is currently compatible with Gateron/Keychron low-profile mechanical switches only, as QMK does NOT support low-profile optical switches.

The Barebone version (without switch and keycap) is also available at your choice.

Low-Profile Double-shot PBT Keycaps

Designed for premium type feeling, the K13 Max comes with our unique double-shot PBT keycaps that made of durable non-shine-through PBT material with excellent oil resistance for long-term use.

RGB Backlights

Comes with more than 22 types of RGB backlight settings (as well as a static white backlight option), and 14 types of backlight settings on the White Backlight version. You can further fine-tune the RGB hue, saturation, brightness, effect speed with ease.

What's in the box?
